There are two navigation charts in this page.

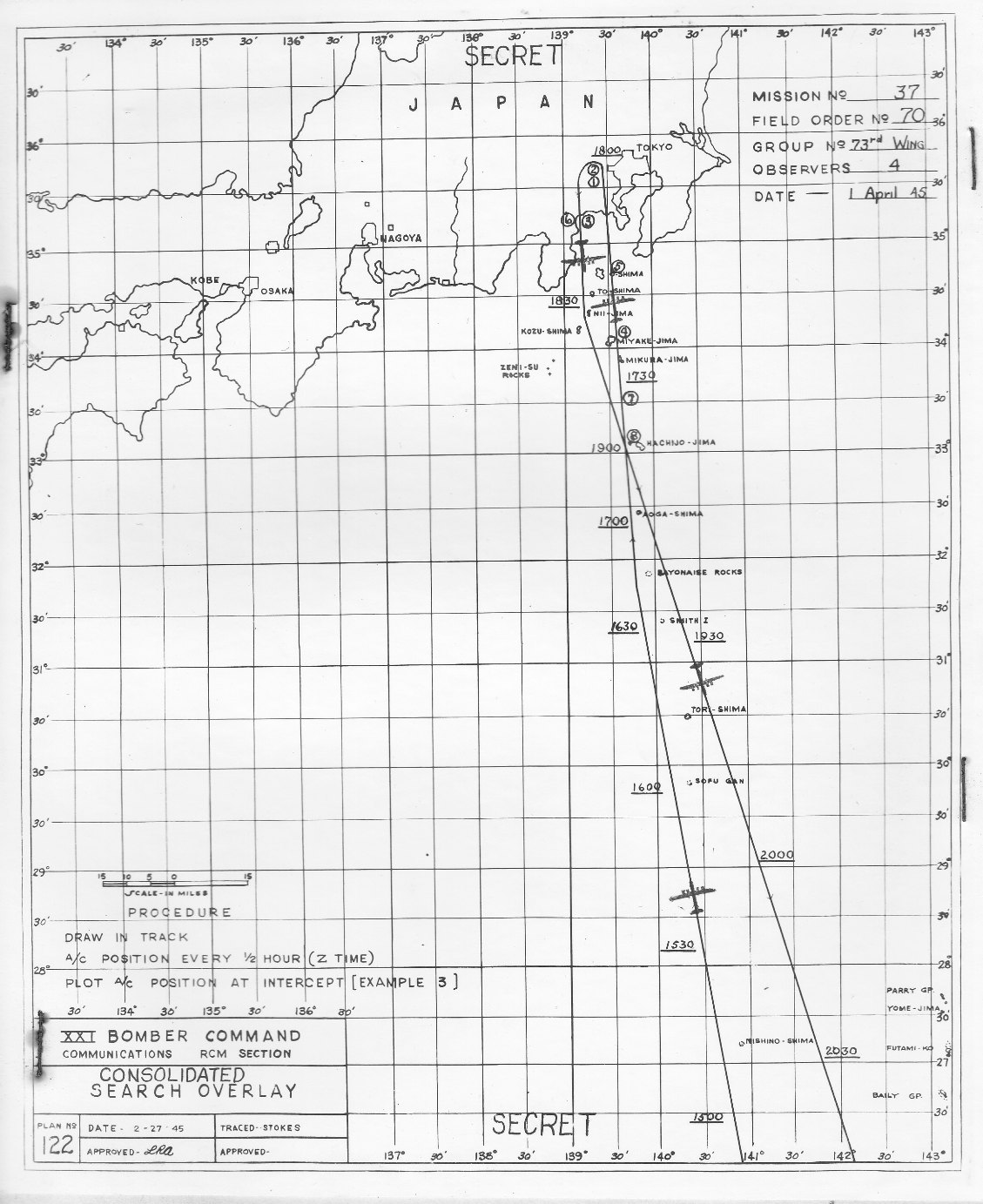

The first was used by the Radar Countermeasure ( RCM ) B-29s.
Note that 4 RCM Officers were on this mission.

The second chart is split into three sections :

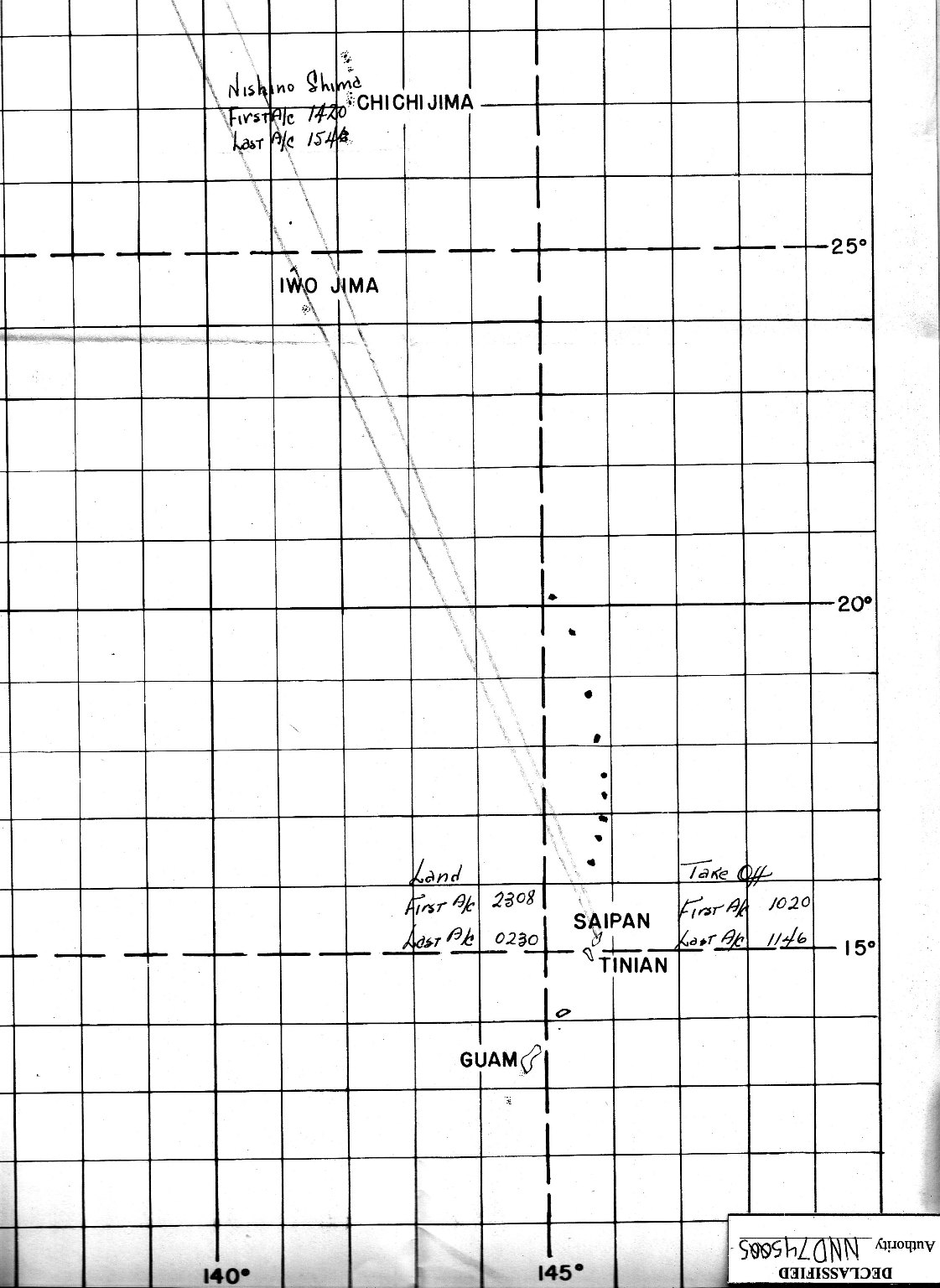

The first plots the track from Saipan to Iwo Jima and

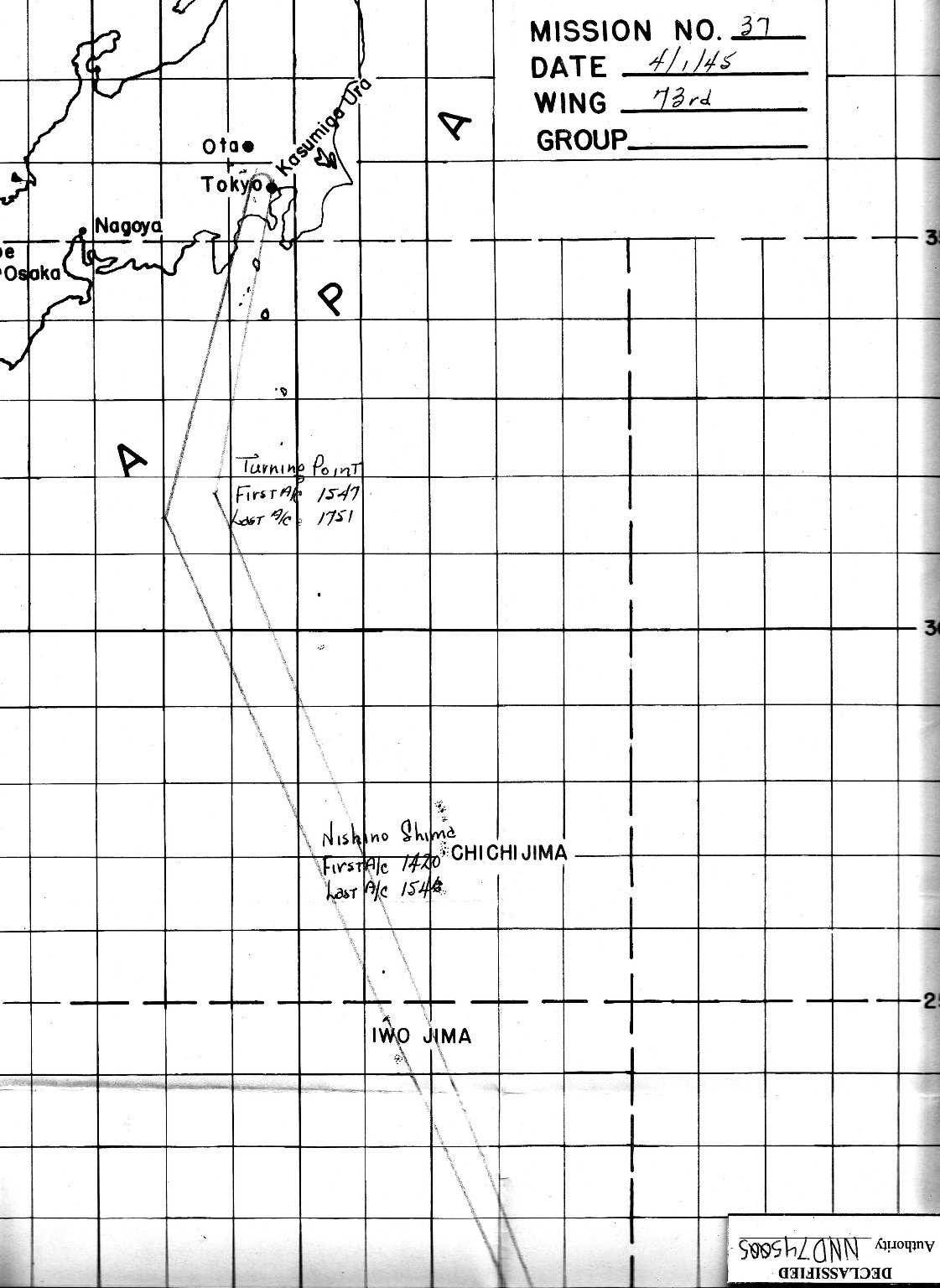

the second from Iwo Jima / Chichi Jima to Tokyo.

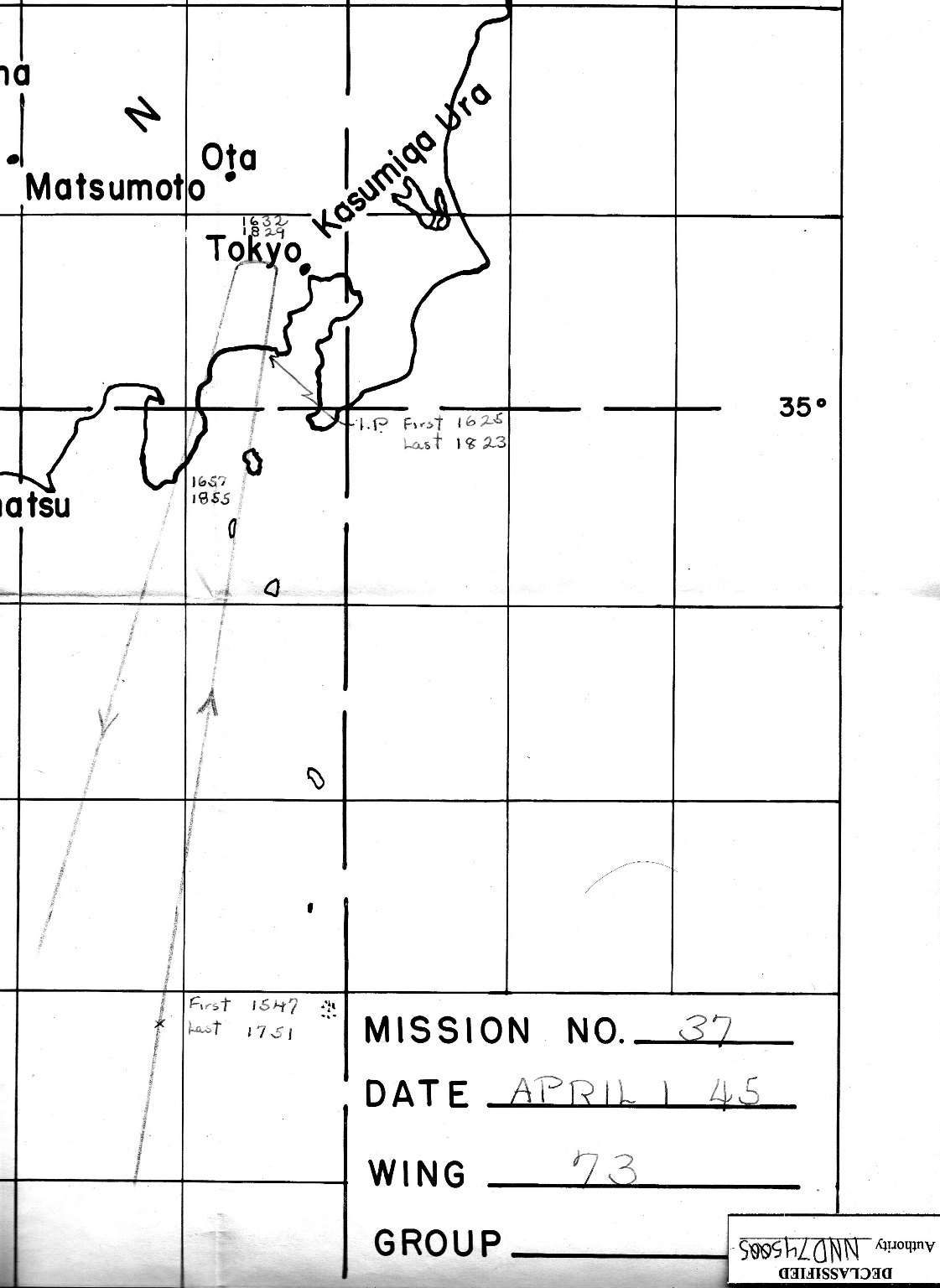

Last is a close-in view of the route flown to and from the target.

The IP ( Initial Point ) is the location where each B-29's Bomb Run would start.

These B-29s bombed individually rather than in formation and
the spacing of the 120 aircraft can be seen with
the difference between times of first and last aircraft.

RADAR COUNTER MEASURE TRACK
4 RCM OBSERVERS

BACK TO TOP

NAVIGATION CHART
SAIPAN TO CHICHI JIMA / IWO JIMA

BACK TO TOP

NAVIGATION CHART
IWO JIMA / CHICHI JIMA
TO
TOKYO



NAVIGATION CHART APPROACH TO AND EXIT FROM TARGET
IP = INITIAL POINT

NOTE TIME OF B-29s AT IP
FIRST : 1625
LAST : 1823
